Leak Tester for Aluminum Wheels

Leak Tester for Aluminum Wheels

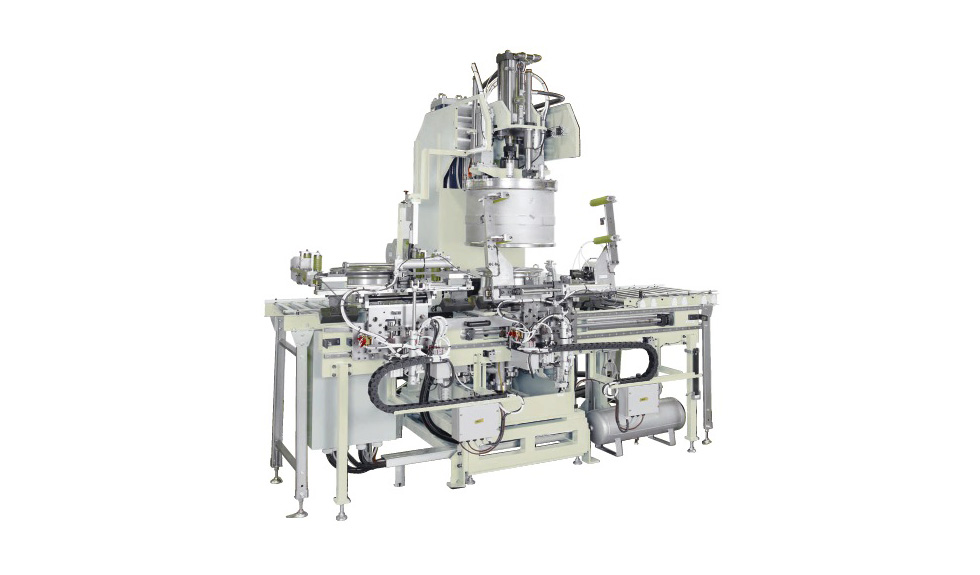

[ Image ] Leak Tester for Aluminum Wheels

This tester can automatically detect the wheel size (13 to 20 inches) and perform a mixed flow leak test.

The leak tester is specially used for aluminum wheels for automobiles and motorcycles. Accurate inspection is automatically conducted by using the automatic wheel size detection function and automatic equipment condition checking. The units are laid out to suit the customer's worksite.
  • The chamber method adopted for accurate inspection. Pass or fail is judged according to the leak amount against the leak threshold value.
  • A mixed flow leak test made possible with Automatic size detection. A production plan be selected freely.
  • Cycle time: 20 to 30 seconds *Depends on the equipment
  • Master check on the equipment performed during automatic operation. Normal inspection maintained.

Applications

Application examples

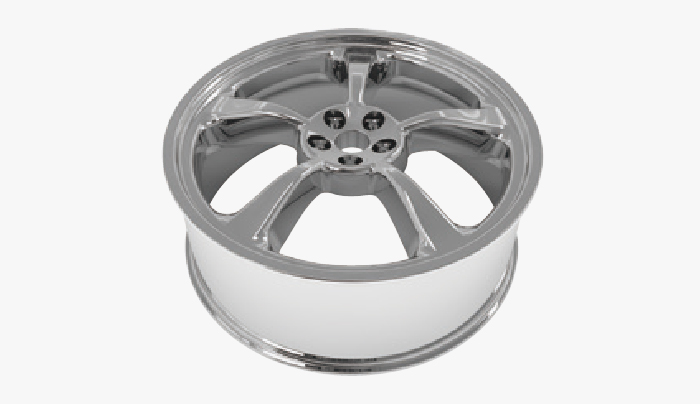

  • [ Image ] Aluminum wheels for automobile

    Aluminum wheels for automobile

  • [ Image ] Aluminum wheels for motorcycle

    Aluminum wheels for motorcycle

Applicable wheel size 13~20 inch
Detectable leak rate 1.0x10-5Pa・m3/s
Detection method Vacuum chamber method

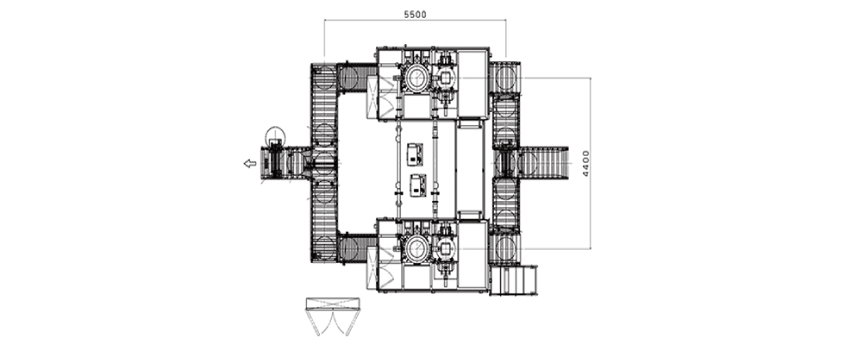

Dimensions

[ Image ] Dimensions

Specifications

Type Aluminum wheel leak tester
Detection method Vacuum chamber method
Cycle time 20 to 30 seconds* (Per chamber)
* The time varies depending on the specifications, program, and chamber section.
Workpiece size Up to 13” to 20” in diameter/ up to 10” in width
Detectable leak rate 1.0×10-5Pa・m3/s
Helium charging pressure 0.4〜0.2MPa(G)
Chamber internal pressure -0.1MPa(G)
Helium concentration 10% or less*
* As an option, a helium recycling unit can be installed.
