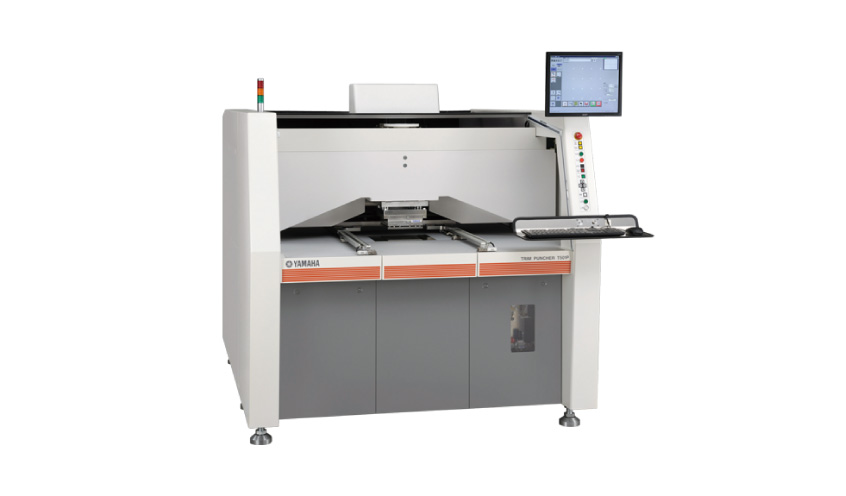

Trim Puncher Irregular Hole Punching/Outline Cutting Machine

Used for film materials for such work sheets as FPCs and touch panels. Metal die punching and half-cutting are also supported.
This model is an irregular hole puncher for film materials in response to various types of product machining requirements, such as FPC connector section trimming and touch panel outline machining. It is characterized by high-accuracy (±20 μm) punching based on image alignment. Metal die punching and half-cutting using a blade are also possible.

Features of Trim Puncher

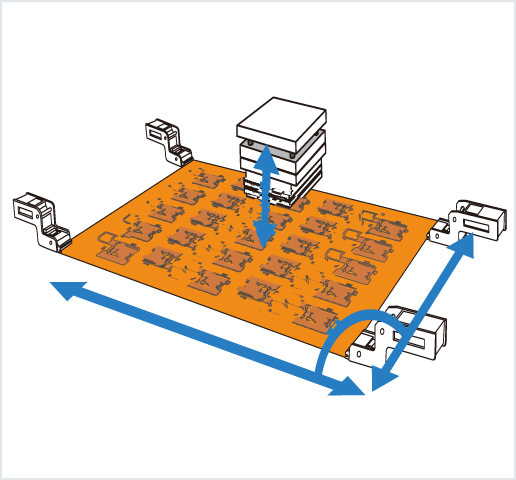

Irregular hole/outline punching equipment using a small-sized post-less die

  • High-accuracy and low-cost irregular hole punching using a compact die
  • Both half-cutting type and die supported
  • Support of punched chip automatic collection possible (Optional)
[ Image ] Irregular hole/outline punching equipment using a small-sized post-less die

Machining accuracy measurement function

After punching, punching deviation is measured to detect a non-conforming item.

  • Model contributing to machining result analysis and product management efficiency improvement
  • Correction of punch positions based on the punching deviation tendency contributes to machining accuracy improvement
[ Image ] Machining accuracy measurement function

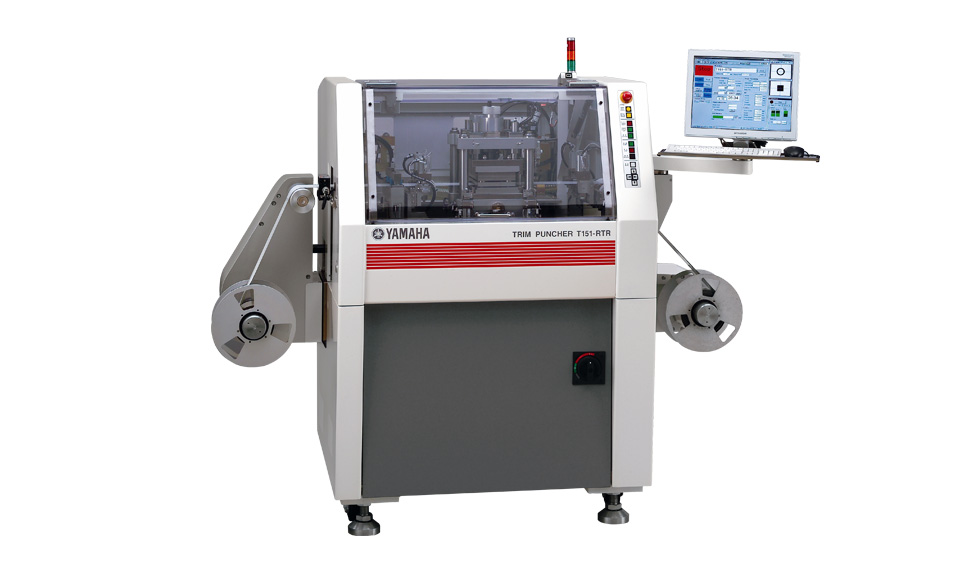

Roll feed system

Nip roll system (Left)

  • Roll fed by driving the nip roll

Grip feeding system (Right)

  • Grip feeding operation unlikely to damage work sheets
[ Image ] Roll feed system

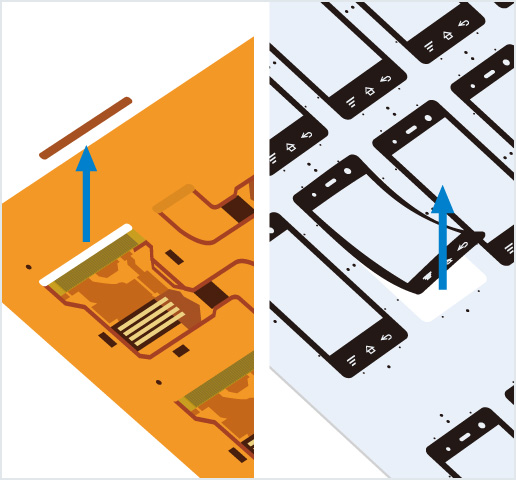

Various machining methods and applications supported

Die punching and half-cutting using a blade are supported.

  • Punching of various products possible from FPC connector section trimming to touch panel film outline machining
  • Prototype making to mass production of various materials supported just with one unit
[ Image ] Various machining methods and applications supported

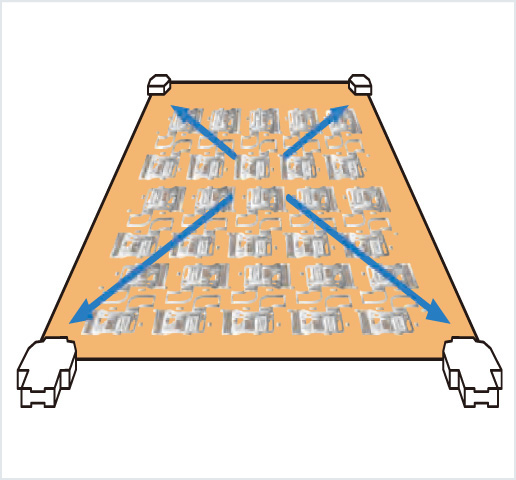

Work sheet clamps with XY tension mechanism

A work sheet is held stably by clamping its four corners and applying tension.

  • Stable machining of a work sheet that is thin or strongly warped made possible by applying tension in the XY-directions
[ Image ] Work sheet clamps with XY tension mechanism

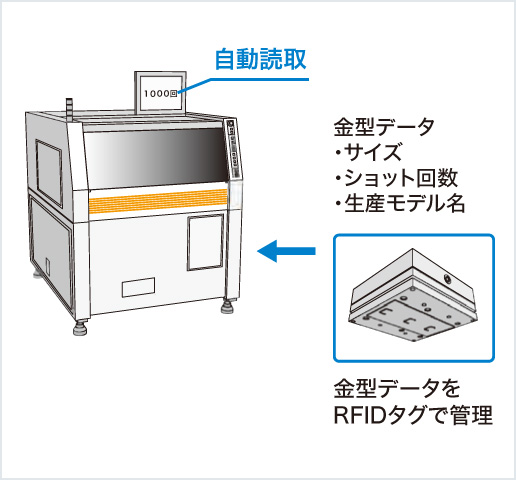

RFID-based die management system

Die information is managed by an RFID system.

  • Setup change work simplified and improper installation also prevented by automatically reading the die name and size.
[ Image ] RFID-based die management system

Application examples

[ Image ] Flex PCB
Flex PCB
[ Image ] Rigid Flex PCB
Rigid Flex PCB
[ Image ] Rigid PCB
Rigid PCB
[ Image ] Touch Panel
Touch Panel
[ Image ] Various film materials
Various film materials
[ Image ] Metallic board etc.
Metallic board etc.
