Film Puncher Tooling Hole Punching Machine
A wide range of sheet materials from thin to thick ones are supported. With an electric punching head, high-speed, high-accuracy punching is realized.
Our proprietary electric punching head realizes punching at high speed up to 0.08 seconds/hole. In addition to high-precision (±20 μm) machining based on image alignment, also supported is NC machining for exposure fiducial marks.
Features of Film Puncher
Round hole punching equipment for film materials
- Punching at high speed (12 holes/second) with high accuracy (±20 μm) realized
- Model best suited for punching tooling holes for exposure and outline machining
- In addition to film materials, some thick sheet products also supported
![[ Image ] Round hole punching equipment for film materials](./file/481/filmpuncher_feature_img04.jpg)
Work sheet clamps with XY tension mechanism
A work sheet is held stably by clamping its four corners and applying tension in the XY directions.
- Stable machining of a work sheet that is thin or strongly warped made possible by applying tension in the XY-directions
![[ Image ] Work sheet clamps with XY tension mechanism](./file/420/filmpuncher_feature_img01.jpg)
Roll feed system
Nip roll system (Left)
- Roll fed by driving the nip roll
Grip feeding system (Right)
- Grip feeding operation unlikely to damage work sheets
![[ Image ] Roll feed system](./file/522/filmpuncher_feature_img02.jpg)
Machining accuracy measurement function
After punching, punching deviation is measured to detect a non-conforming item.
- Model contributing to machining result analysis and product management efficiency improvement
- Correction of punch positions based on the punching deviation tendency contributes to machining accuracy improvement
![[ Image ] Machining accuracy measurement function](./file/419/filmpuncher_feature_img03.jpg)
Selectable punch head mechanism
A punch head structure is selectable to respond to thin and thick material work sheets.
- High-speed type: Electric punching head (solenoid driven)
- High-thrust type: NC punching head (NC servo control)
Sophisticated software
Various functions for productivity improvements are provided as standard features.
- Punching path optimization function
- One touch accuracy correction after tool replacement
- Program automatic conversion function from drill data/drawing data
- Machining data creation by easy teaching
Line up
-
High-speed model F602 S2- High speed
- 545×365
- 0.24s/shot
- 2 heads
-

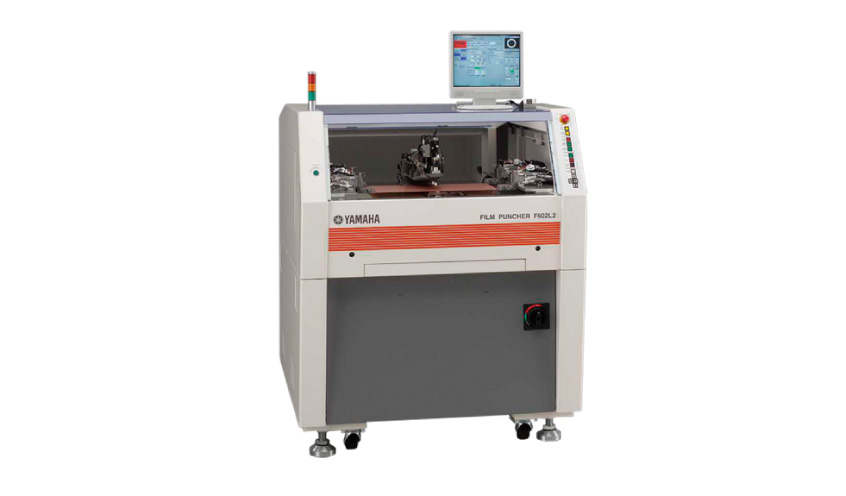

High-speed model/large sheet support F602 L2- High speed
- 545×600
- 0.24s/shot
- 2 heads
-
High-thrust model F602 SP2- High thrust
- 545×365
- 0.35s/shot
- 1 heads
-

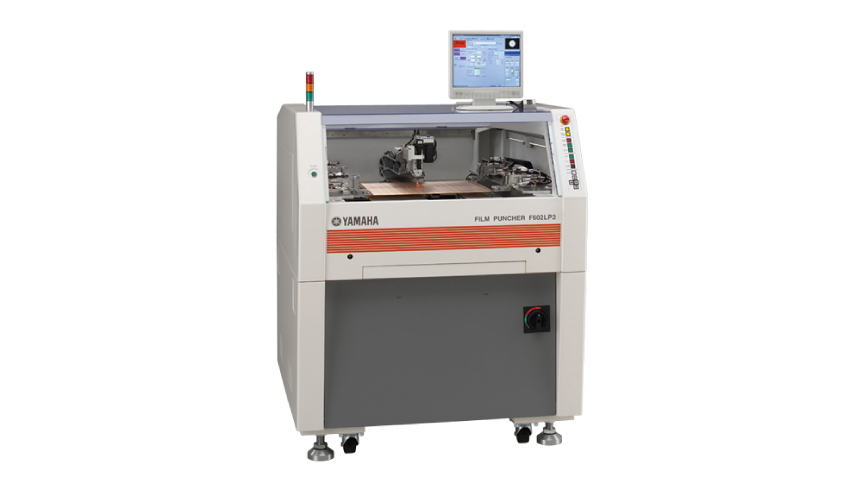

High-thrust model/large sheet support F602 LP2- High thrust
- 545×600
- 0.35s/shot
- 1 heads
-

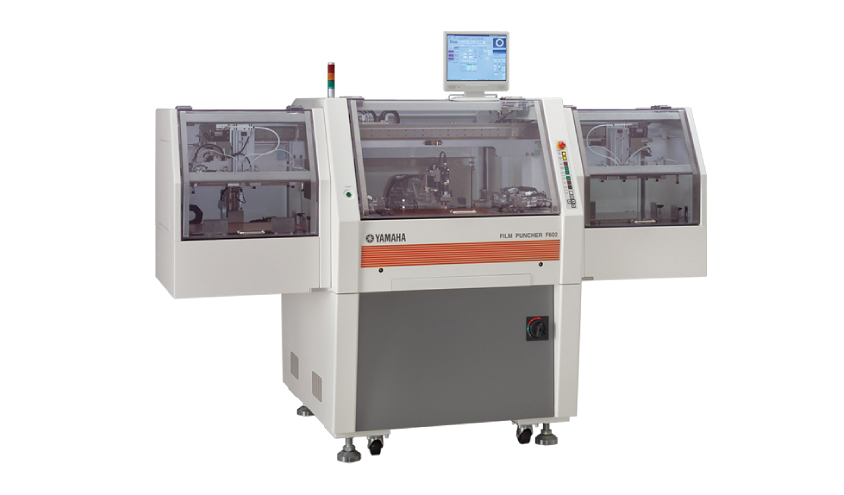

High-speed model/automatic loading/unloading F602 S2-ald- Automatic
- 500×365
- 0.24s/shot
- 2 heads
-

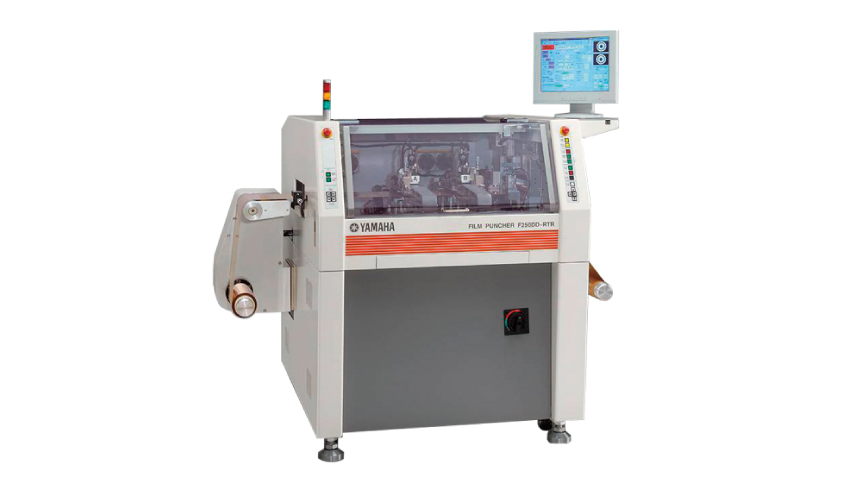

Roll to Roll supported model F250DD-RTR / GFR- Roll to Roll
- W250
- 0.08s/shot
- 4 heads
-
Roll to Roll supported model・large sheet support F500DC-RTR- Roll to Roll
- W500
- 0.11s/shot
- 4 heads
Application examples
![[ Image ] Flex PCB, PI film](./file/451/work_flexible_img.jpg)
Flex PCB, PI film
![[ Image ] Touch Panel](./file/455/work_touchpanel_img.jpg)
Touch Panel
![[ Image ] Various film materials](./file/456/work_films_img.jpg)
Various film materials
