Leak Tester for Drums

Leak Tester for Drums
[ Image ] Leak Tester for Drums

This tester contributes to productivity improvement through high-speed detection and high-speed transportation that match the drum production speed.

For drums, for which accurate leak detection is believed to be difficult, leak detection can be performed automatically and accurately by introducing the helium-based inspection. Moreover, units such as a peripheral transport unit are systematized, helping speed up transfer and detection.
  • High-speed transfer and high-speed inspection possible according to the drum production speed
  • Detection possible of tiny leaks from the wound-up or welded area at a processed point or tiny leaks due to material defect. Product reliability is greatly improved.
  • Cost reduction possible with the warp prevention mechanism, which does not require any fixture.
  • Production line configuration made easy by systematizing units such as a peripheral unit (transport) as an inspection station

Applications

Application examples
  • Drums

Applicable drum size JIS Z 1601 International Standard type B
Volume: 200 L
Detectable leak rate Leakage from a hole with a diameter of 0.03 mm or more
Detection method Vacuum chamber method

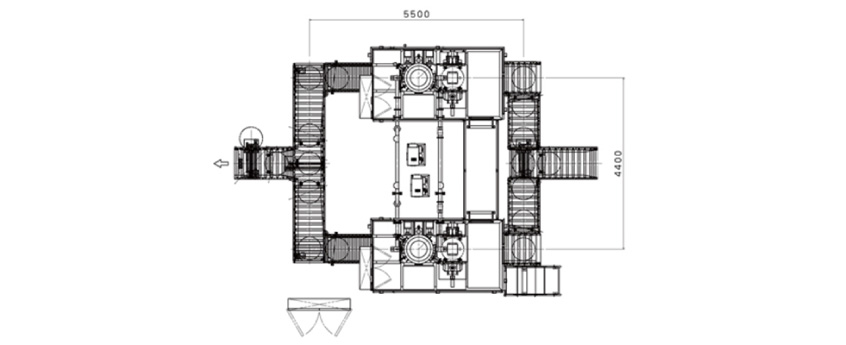

Dimensions

[ Image ] Dimensions

Specifications

Type Drums leak tester
Detection method Vacuum chamber method
Cycle time 4.7 seconds* (2-chamber type)
* The time varies depending on the specifications, program, and the number chambers.
Workpiece size JIS Z 1601 and International Standard type B
Volume: 200L
Detectable leak rate Leakage from a hole with a diameter of 0.03 mm or more
Helium charging pressure 0MPa(G)
Chamber internal pressure -0.1MPa(G)
Helium concentration 0.15% or less

Inquiry

TEL : +81-53-467-3601 (FA Division)
