Leak Tester for Fuel Tanks

Leak Tester for Fuel Tanks
[ Image ] Leak Tester for Fuel Tanks

With the differential pressure control function, this tester prevents warping and conducts an accurate inspection effectively without using a fixture.

The leak tester is specially used for fuel tanks for automobiles and motorcycles. Various fail-safe functions are provided to protect the inspection circuit when measuring a workpiece with heavy leakage.
  • ycle time: approximately 30 seconds *Depends on the equipment
  • Various fail-safe functions provided. Inspection circuit protected when measuring a workpiece with heavy leakage
  • Cost reduction possible with the warp prevention mechanism, which does not require any fixture.

Applications

Application examples
  • [ Image ] Automobile fuel tank

    Automobile fuel tank

  • [ Image ] Motorcycle fuel tank

    Motorcycle fuel tank

Applicable tank size Max. 1200 x 800 x 250mm
Detectable leak rate 1.0x10-5Pa・m3/s
Detection method Vacuum chamber method

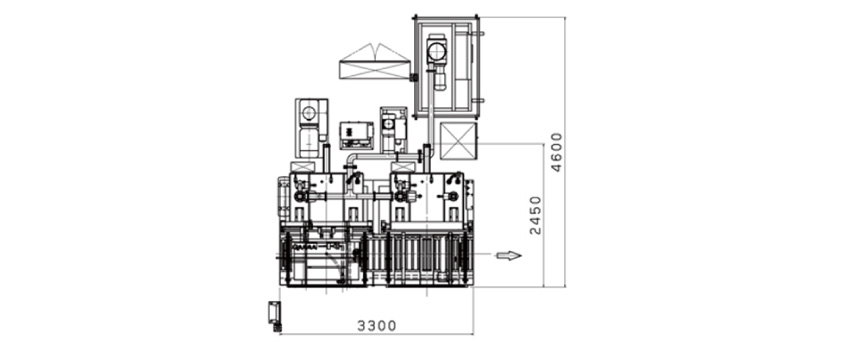

Dimensions

[ Image ] Dimensions

Specifications

Type Leak Tester for Fuel Tanks
Detection method Vacuum chamber method
Cycle time 30 seconds* (Standard specifications 2-chamber type)
* The time varies depending on the specifications, program, and chamber section.
Workpiece size Max. 1200 x 800 x 250mm
Detectable leak rate 1.0×10-5Pa・m3/s
Helium charging pressure -0.09MPa(G)
Chamber internal pressure -0.1MPa(G)
Helium concentration 100%*
* As an option, a helium recycling unit can be installed.
