Scriber/Placer/Tray Setter Scribing/Attaching/Pick-and-Place Machine

A rich lineup of products support the realization of factory automation in board manufacturing. These machines are characterized by high speed and high accuracy.
Fully provided with Yamaha's propriety technology, these machines support factory automation for manufacturing various printed circuit boards from ceramic substrate to flexible PCBs.
When individual machines are combined according to your requirements, considerable labor savings and automation are realized.

Features of Scriber/Placer/Tray Setter

Placer:
High-accuracy stiffener attaching machine for flexible PCBs

  • SUS stiffener attachment process automated, speed and accuracy improved
  • Simple machine structure and compact machine size
  • High-speed attaching motion using four heater heads
[ Image ] Placer: High-accuracy stiffener attaching machine for flexible PCBs

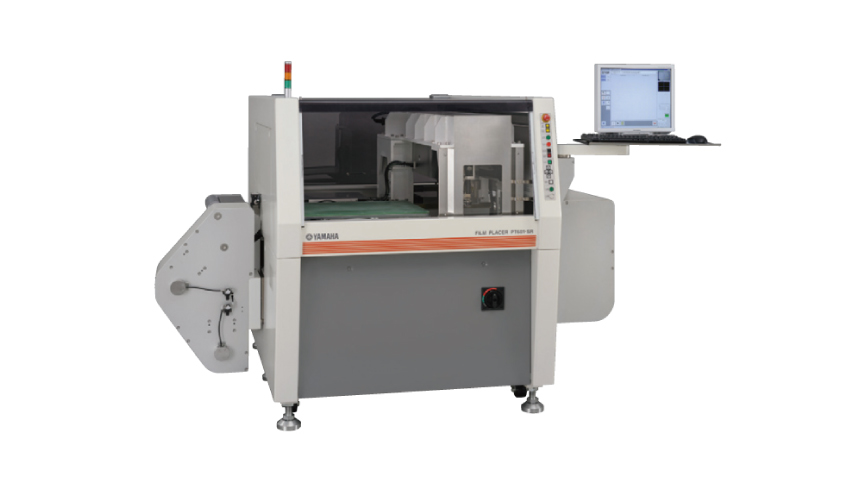

Film placer:
EMI shielding film attaching machine

  • Roll EMI shielding film punched and attached onto flexible PCB
  • Compared to manual operation, improvement and stabilization of attachment quality are possible
  • No positioning hole for attachment required and surface mounting efficiency improved
[ Image ] Film placer: EMI shielding film attaching machine

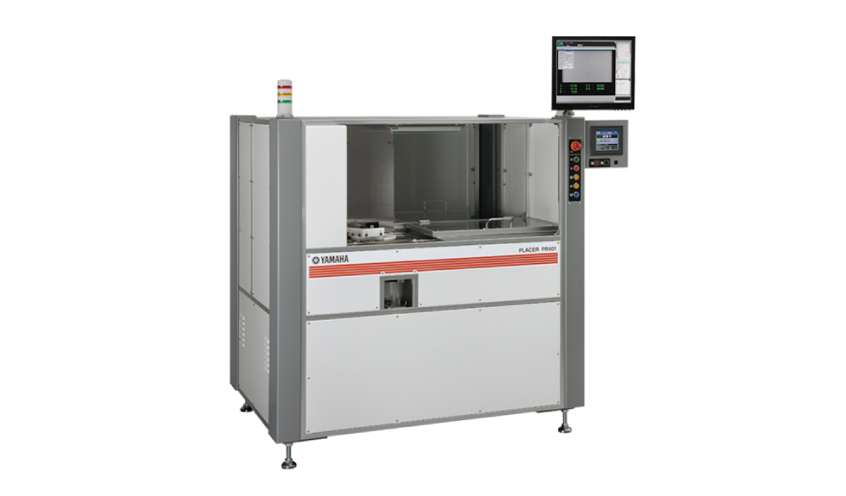

Tray setter:
Tray arranging machine for small-sized pieces

  • Pieces such as stiffeners arranged on the tray at high speed (0.3 seconds/piece)
  • Identification of the front face and back face of piece possible
  • Considerable manpower saving and automation possible in combined use with a place
[ Image ] Tray setter: Tray arranging machine for small-sized pieces

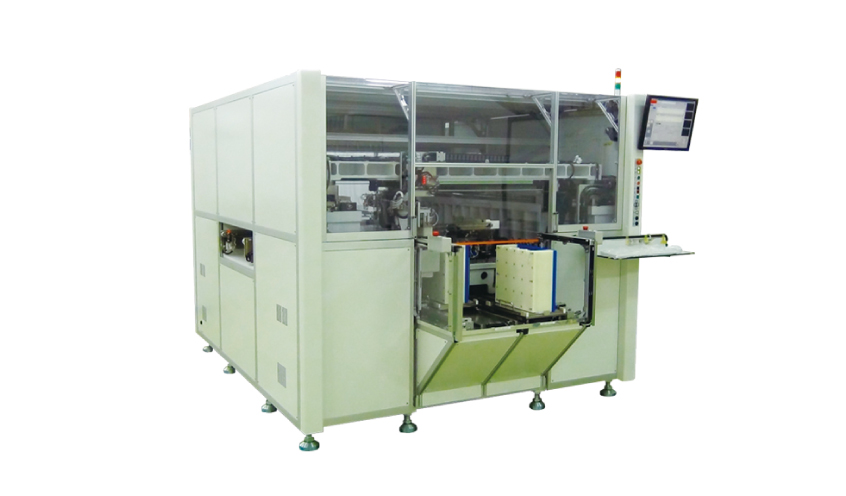

PCB placer:
High-accuracy in-frame arraying machine for HDI PCBs

  • HDI PCB pieces automatically arranged in the frame to create an array for the mounting process
  • Material costs reduced by improved PCB surface mounting efficiency
  • Reduction of part mounting failures attributable to PCB contraction and disposal of defective chips before mounting made possible

[ Image ] PCB placer: High-accuracy in-frame arraying machine for HDI PCBs

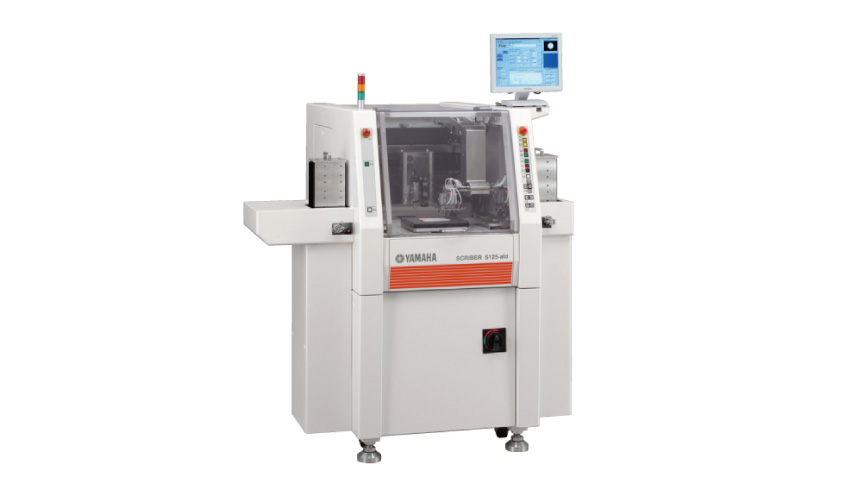

Scriber:
Automatic splitting machine for ceramic substrate

  • Fine cracks generated by a diamond rotary cutter to divide the board after baking
  • Washing process not required, and splitting after mounting parts possible
  • Machining with high accuracy possible without being affected by contraction due to a change in temperature at the time of baking
[ Image ] Scriber: Automatic splitting machine for ceramic substrate
