For width: 620 mm, roll to roll, small to medium size pieces MR622-GFR

For width: 620 mm, roll to roll, small to medium size pieces
MR622-GFR

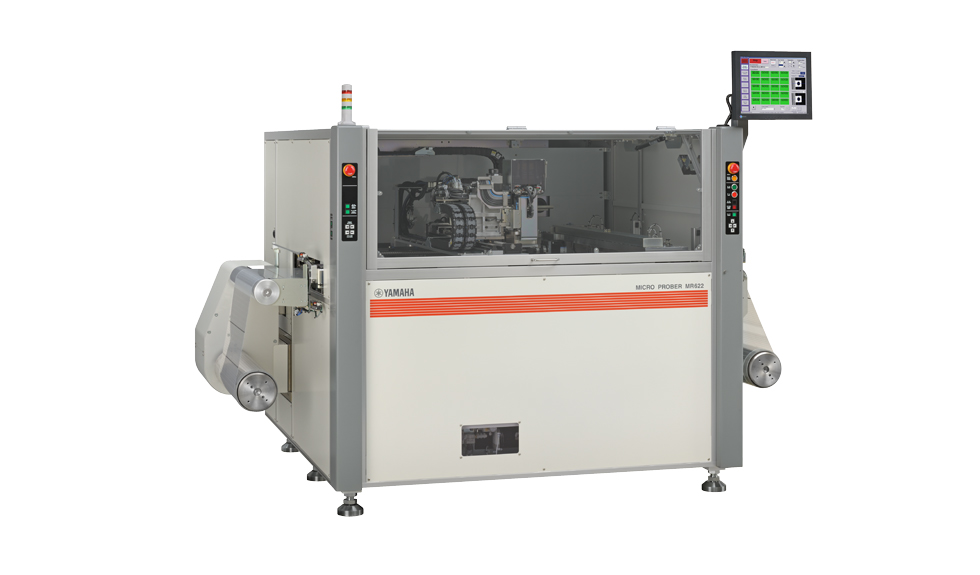

[ Image ] For width: 620 mm, roll to roll, small to medium size pieces MR622-GFR
A 620 mm wide roll transfer type machine. This model is best suited for inspection of small to medium sized chips.  Continuity/insulation test with ±5 μm high accuracy is possible. With the grip feeding system, which is unlikely to damage work sheets, work sheets are fed.

Applications

Application examples
  • [ Image ] Touch panel (ITO)

    Touch panel (ITO)

Max. work sheet size Roll width : 620mm
Max. test fixture size When rotating:φ200mm When not rotating:X275 x Y100mm
Work sheet transfer Loading:Roll Unloading:Roll

Dimensions

MR622-GFR
[ Image ] Dimensions MR622-GFR

Specifications

Model MR622-GFR
Type MR622-GFR-M5S
Application examples Touch panel (ITO)
Test capability Max. number of test points Upper head:1,534 / Lower head:894
Work sheet size Roll witdh : 350~620mm
Max. test range*1 X600 x Y600 mm
Max. test fixture size When rotating:φ200mm / When not rotating:X275 x Y100mm
Positioning accuracy*2 ±5μm
Test specifications Determination method Open/short (pass/fail determined based on specified resistance value)
Open test*2 Test range: 2 wire test 10Ω~ 10kΩ (0.5mA,10mA)
4 wire test 1mΩ~ 500Ω (10mA, 40mA, 100mA)
Open voltage: 15V ~ 50V
Test accuracy: 2 wire test ±10% (50Ω~ 10kΩ), ±5Ω (10Ω~ 50Ω)
4 wire test ±10% (1mΩ~ 500Ω)
Short test*2 Test range: 100kΩ~ 100MΩ
Test voltage: 50V ~ 250V
Test accuracy: ±10%
Options μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer Loading / Unloading Roll
Image processing Camera view X2.4 x Y1.8mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN・USB
Display 15 inch LCD with touch panel
Software OS Windows7
Production support function Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment Weight Approx. 2,300kg
Power supply/th> 1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. The actual test range varies depending on the fixture shape, holding range, etc.
  2. Data taken from our performance test.
