Large sheet supported model/Automatic loading/unloading MR612-A

Large sheet supported model/Automatic loading/unloading
MR612-A
[ Image ] Large sheet supported model・Automatic loading/unloading MR612-AA
A fully automatic type of machine in which a workpiece is loaded/unloaded automatically. A large sheet up to 610 x 510 mm is supported. Continuity/insulation test with ±5μm high accuracy is possible. This machine contributes to labor savings.

Applications

Application examples
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Rigid Flex PCB

    Rigid Flex PCB

  • [ Image ] FC-CSP

    FC-CSP

  • [ Image ] FC-BGA

    FC-BGA

Max. work sheet size X610 x Y500mm
Max. test fixture size When rotating:φ200mm When not rotating:X275 x Y100mm
Work sheet transfer Loading:Automatic  Unloading:Automatic

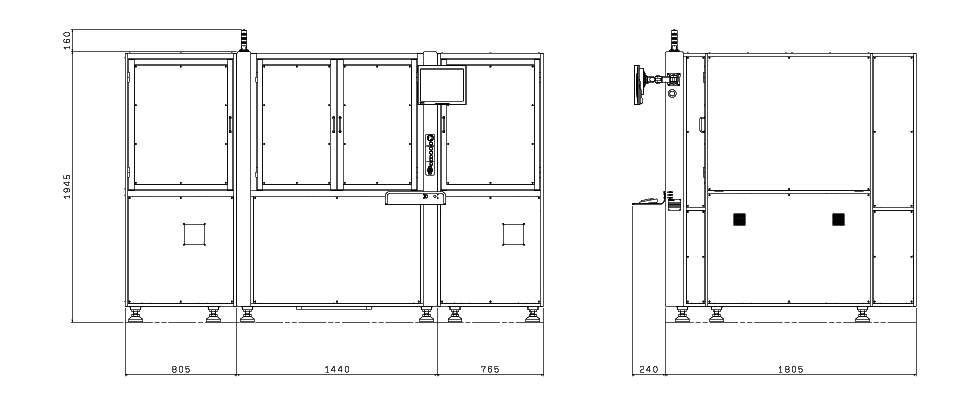

外形寸法

MR612-A
[ Image ] MR612-A

Specifications

Model MR612-A
Type MR612-A-DM5S
Application examples Flex PCB, Rigid Flex PCB, IC substrate
Test capability Max. number of test points Upper head:2,046 / Lower head:2,046
Work sheet size X70~610mm / Y150~510mm
Max. test range*1 Range excluding an area of X7.5 x Y9.0mm from four corners of work sheet
Max. test fixture size When rotating:φ200mm / When not rotating:X275 x Y100mm
Positioning accuracy*2 ±5μm
Test specifications Determination method Open/short (pass/fail determined based on specified resistance value)
Open test※2 Test range: 2 wire test 10Ω~ 10kΩ (0.5mA,10mA)
4 wire test 1mΩ~ 500Ω (10mA, 40mA, 100mA)
Open voltage: 15V ~ 50V
Test accuracy: 2 wire test ±10% (50Ω~ 10kΩ), ±5Ω (10Ω~ 50Ω)
4 wire test ±10% (1mΩ~ 500Ω)
Short test*2 Test range: 100kΩ~ 100MΩ
Test voltage: 50V ~ 250V
Test accuracy: ±10%
Options μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer Loading / Unloading Automatic
Image processing Camera view X2.4 x Y1.8mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 15 inch LCD with touch panel
Software OS Windows7
Production support function Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment Weight Approx. 2,650kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. The actual test range varies depending on the fixture shape, holding range, etc.
  2. Data taken from our performance test.
