Roll to Roll supported model MR262-GFR

Roll to Roll supported model
MR262-GFR

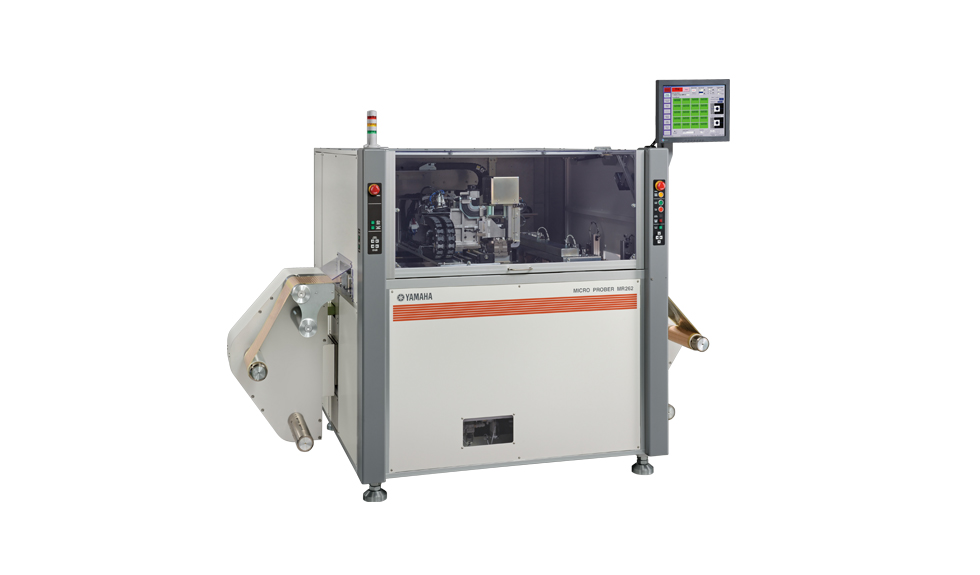

[ Image ] Roll to Roll supported model MR262-GFR
A 260 mm wide roll transfer type machine. Continuity/insulation test with ±5 μm high accuracy is possible. With the grip feeding system, which is unlikely to damage work sheets, work sheets are fed.

Applications

Application examples
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Rigid Flex PCB

    Rigid Flex PCB

  • [ Image ] FC-CSP

    FC-CSP/p>

  • [ Image ] FC-BGA

    FC-BGA
Max. work sheet size Roll width : 260mm
Max. test fixture size When rotating：φ200mm　When not rotating：X275 x Y100mm
Work sheet transfer Loading：Roll　Unloading：Roll

Dimensions

MR262-GFR

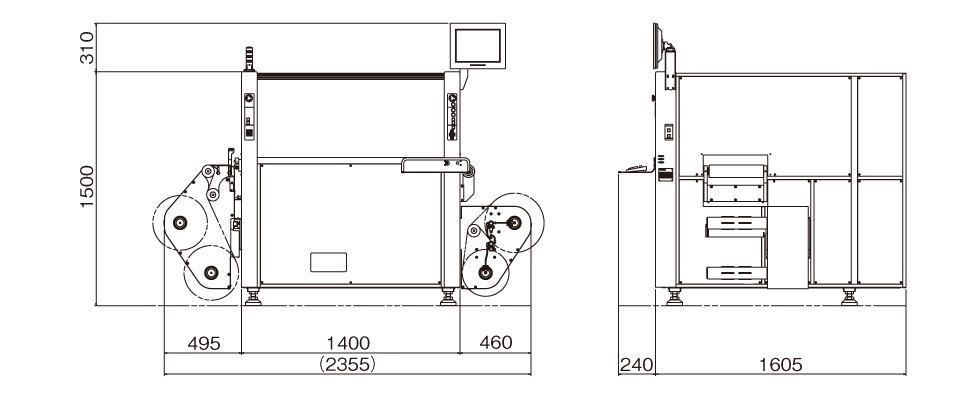

[ Image ] Dimensions　MR262-GFR

Specifications

Model MR262-GFR
Type MR262-GFR-M5S
Application examples Flex PCB, Rigid Flex PCB
Test capability Max. number of test points Upper head：1,534 / Lower head：1,022
Work sheet size Roll witdh : 100～260mm
Max. test range*1 X400 x Y260 mm
Max. test fixture size When rotating：φ200mm / When not rotating：X275 x Y100mm
Positioning accuracy*2 ±5μm
Test specifications Determination method Open/short (pass/fail determined based on specified resistance value)
Open test*2 Test range: 2 wire test 10Ω～ 10kΩ (0.5mA,10mA)
4 wire test 1mΩ～ 500Ω (10mA, 40mA, 100mA)
Open voltage: 15V ～ 50V
Test accuracy: 2 wire test ±10% (50Ω～ 10kΩ), ±5Ω (10Ω～ 50Ω)
4 wire test ±10% (1mΩ　～ 500Ω)
Short test*2 Test range: 100kΩ～ 100MΩ
Test voltage: 50V ～ 250V
Test accuracy: ±10%
Options μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer Loading / Unloading Rolll
Image processing Camera view X2.4 x Y1.8mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN・USB
Display 15 inch LCD with touch panel
Software OS Windows7
Production support function Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment Weight Approx. 1,300kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. The actual test range varies depending on the fixture shape, holding range, etc.
  2. Data taken from our performance test.
