Standard model MR262

Standard model
MR262
[ Image ] Standard model MR262
Standard type of machine in which a work sheet is loaded/unloaded manually. Continuity/insulation test with ±5 μm high accuracy is possible.

Applications

Application examples
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Rigid Flex PCB

    Rigid Flex PCB

  • [ Image ] FC-CSP

    FC-CSP

  • [ Image ] FC-BGA

    FC-BGA

Max. work sheet size (X)260 x (Y)400mm
Max. test fixture size When rotating:φ200 When not rotating:X275 x Y100mm
Work sheet transfer Loading:Manual Unloading:Manual(MR262-M5S-U:Automatic)

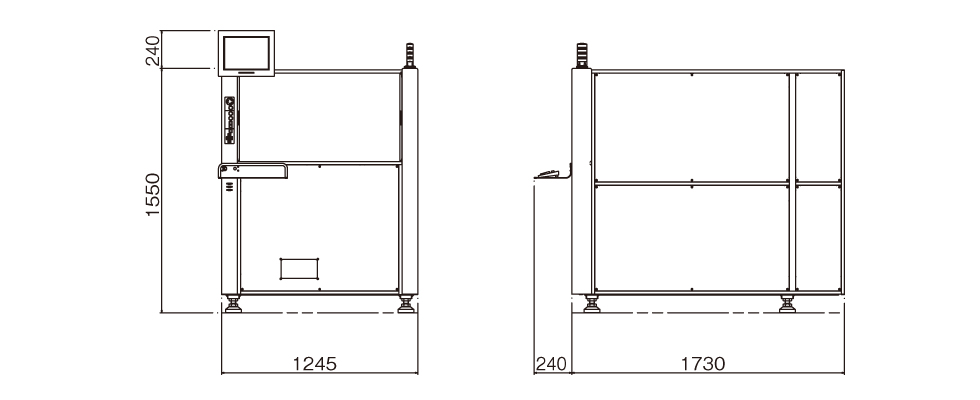

Dimensions

MR262
[ Image ] Dimensions MR262

Specifications

Model MR262
Type MR262-M5S-N MR262-M5S-U
Application examples Flex PCB, Rigid Flex PCB
Test capability Max. number of test points Upper head:1,534 / Lower head:1,022
Work sheet size X70~260mm / Y70~400mm
Max. test range*1 Range excluding an area of X7.5 x Y9.0mm from four corners of work sheet
Max. test fixture size When rotating:φ200mm / When not rotating:X275 x Y100mm
Positioning accuracy*2 ±5μm
Test specifications Determination method Open/short (pass/fail determined based on specified resistance value)
Open test*2 Test range: 2 wire test 10Ω~ 10kΩ(0.5mA、10mA)
4 wire test  1mΩ~ 500Ω(10mA、40mA、100mA)
Open voltage: 15V ~ 50V
Test accuracy: 2 wire test ±10% (50Ω~ 10kΩ), ±5Ω (10Ω~ 50Ω)
4 wire test ±10% (1mΩ~ 500Ω)
Short test*2 Test range: 100kΩ~ 100MΩ
Test voltage: 50V ~ 250V
Test accuracy: ±10%
Options μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer Loading / Unloading Manual Manual / Automatic
Image processing Camera view X2.4 x Y1.8mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 15 inch LCD with touch panel
Software OS Windows7
Production support function Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment Weight Approx. 1,300kg Approx. 1,350kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. The actual test range varies depending on the fixture shape, holding range, etc.
  2. Data taken from our performance test.
