Compact model MR262C

Compact model
[ Image ] Compact model MR262C
A compact type of machine in which a work sheet is loaded/unloaded manually.  Continuity/insulation test with ±5 μm high accuracy is possible. The layout can be changed easily. This model is best suited for inline connection.


Application examples
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Rigid Flex PCB

    Rigid Flex PCB

  • [ Image ] FC-CSP


  • [ Image ] FC-BGA


Max. work sheet size X260 x Y280mm
Max. test fixture size When rotating:φ200mm (width 100mm)
Work sheet transfer Loading:Manual Unloading:Manual

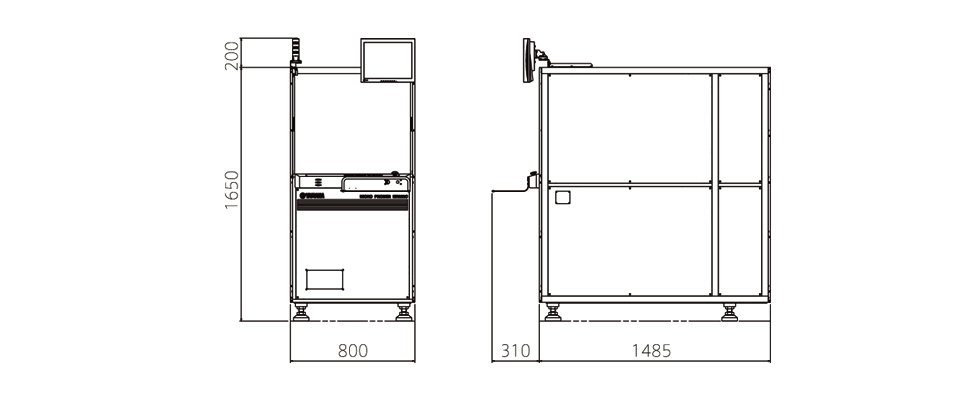

[ Image ] Dimensions MR262C


Model MR262C
Type MR262C-M5S
Application examples Flex PCB, Rigid Flex PCB
Test capability Max. number of test points Upper head:1,534 / Lower head:1,534
Work sheet size X100~260mm / Y150~280mm
Max. test range*1 Range excluding an area of X7.5 x Y9.0mm from four corners of work sheet
Max. test fixture size When rotating:φ200mm (width 100mm)
Positioning accuracy*2 ±5μm
Test specifications Determination method Open/short (pass/fail determined based on specified resistance value)
Open test*2 Test range: 2 wire test 10Ω~ 10kΩ (0.5mA,10mA)
4 wire test 1mΩ~ 500Ω (10mA, 40mA, 100mA)
Open voltage: 15V ~ 50V
Test accuracy: 2 wire test ±10% (50Ω~ 10kΩ), ±5Ω (10Ω~ 50Ω)
4 wire test ±10% (1mΩ~ 500Ω)
Short test*2 Test range: 100kΩ~ 100MΩ
Test voltage: 50V ~ 250V
Test accuracy: ±10%
Options μ Short test, Spark detection, Heating test, Non contact test
Work sheet transfer Loading / Unloading Manual
Image processing Camera view X2.4 x Y1.8mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN・USB
Display 15 inch LCD with touch panel
Software OS Windows7
Production support function Automatic fixture correction, output of test result log, automatic retry test, fixture stroke count
Usage environment Weight Approx. 900kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. The actual test range varies depending on the fixture shape, holding range, etc.
  2. Data taken from our performance test.


TEL:+81-53-467-3601(FA Division)
