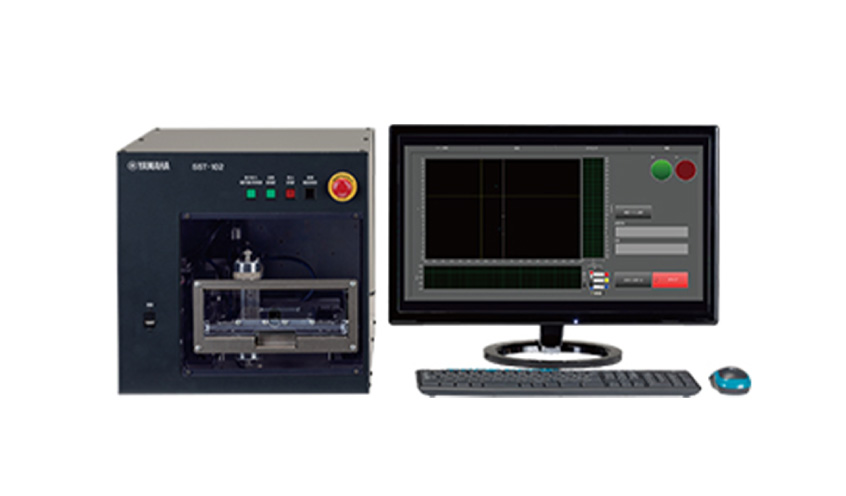

Battery Tab Welding Tester SST-102
Battery Tab Welding Tester
SST-102
SST-102
![[ Image ] Battery Tab Welding Tester SST-102](./file/353/sst_102_main.jpg)
Internal defects visualized by airborne ultrasonic

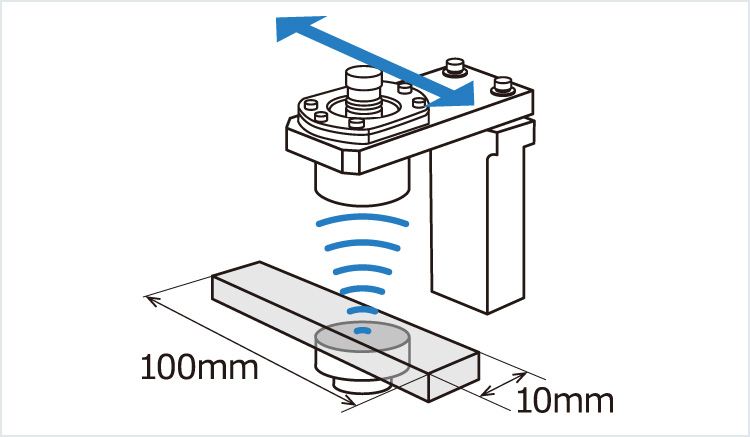

This equipment evaluates the performance of the lithium-ion battery tab welding and inspects the workpiece for internal defects, such as crimping failures of connectors. Measured data is visualized by using dedicated image processing software. Its compact design allows the tester to be put on a desk.![[ Image ] Battery Tab Welding Tester illustration](./file/430/sst_102_img01.jpg)
- 500 mm/s high-speed mechanical scan
- Measured data converted into numerical values to judge the conformity
- Compact design adopted to allow the tester to be put on a desk
Case study
Applications

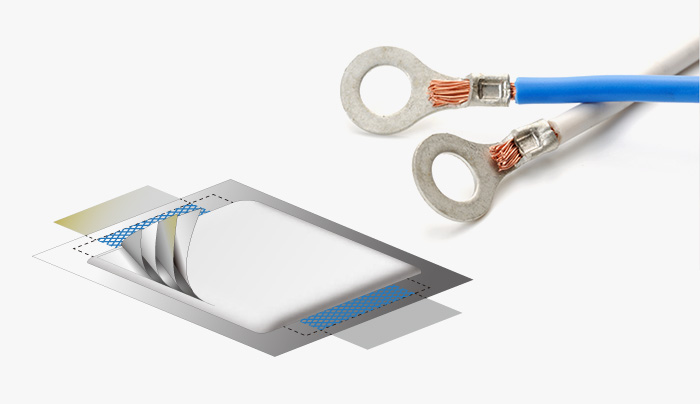

| Application examples |
|
|---|
![[ Image ] Lithium-ion battery tab welding](./file/478/work_lithium-ion_img.jpg)
![[ Image ] Crimping of connectors](./file/476/work_connectors_img.jpg)
| Scanning range | W100mm x D10mm |
|---|---|
| Resolution | 1mm |
| Scanning speed | 500mm/sec |

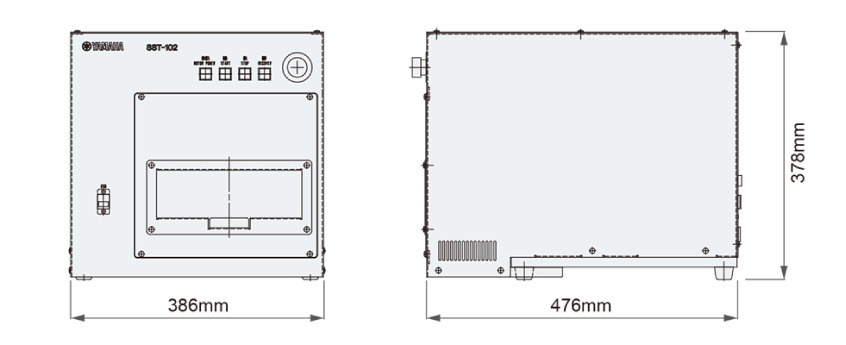

Dimensions
![[ Image ] Dimensions SST-102](./file/351/sst_102_size_img001.jpg)
Specification
| Product composition | Ultrasonic scanning unit 1 set Ultrasonic sensor head unit : Probe holder / Probe (transmitted & received) Ultrasonic Pulsar Receiver Control PC |
|---|---|
| Peripheral devices 1set : display, keyboard, mouse | |
| Resolution | 1mm |
| Scanning speed | Max. 500mm/sec |
| Scanning range | W100mm x D10mm |
| Control PC | PC : Built-in product OS : Windows 10 Input : Keyboard / mouse Display : LCD panel display (HDMI) |
| Data | SSD |
| Language | English |
| Power voltage, power supply | AC100~220V, 50/60Hz, 0.5kVA |
| Weight | Approx. 30kg |
| Usage environment | 5~40℃, no condensation |
* The contents of this catalog are subject to change without notice.
* Modification to suit the customer's usage is also possible.
* Modification to suit the customer's usage is also possible.
