High-speed model T501

High-speed model
T501
[ Image ] High-speed model T501
A high-speed type of machine in which a work sheet is loaded/unloaded manually. Up to 1.2 t thrust trimming at high speed (0.55 seconds/hole) with high accuracy (±20 μm) is possible.

Applications

Applications
  • [ Image ] Flex PCB

    Flex PCB

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials

Max. work sheet size X510 x Y510mm
Work sheet transfer Loading:Manual Unloading:Manual
Thrust power Approx. 1.2t

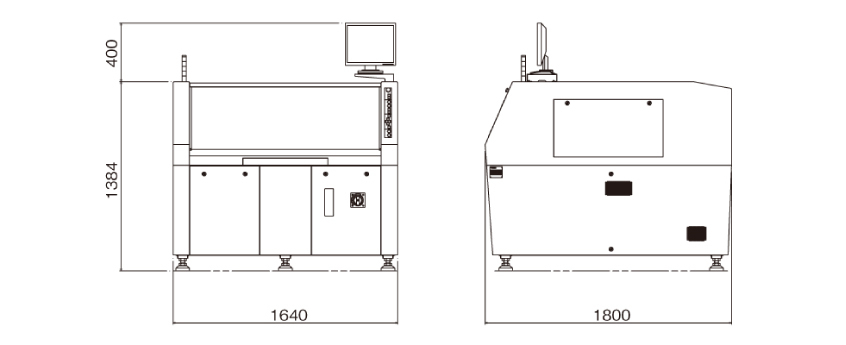

Dimensions

T501
[ Image ] Dimensions T501

Specifications

Model T501
Type T501-2
Application examples Flex PCB, Various film materials etc.
Processing capability Work sheet size X150~510mm / Y150~510mm
Range*1 Range excluding an area of X12 x Y60mm from four corners of work sheet
Accuracy*2 ±20μm
Speed*2 0.55 s/shot
Punching head No. of heads 1
Thrust Power Approx. 11,760N (1,200kgf)
Die module Max. punching size Large : X100 x Y50mm
Medium : X50 x Y50mm
Small : X25 x Y50mm
Max. half-cutting size
Built-in RFID Provided
Work sheet transfer Loading / Unloading Manual
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment Weight Approx. 2,200kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 3kVA
Dry air 0.5MPa
  1. The actual processing range varies depending on the die module shape, holding range, etc.
  2. Data taken using our test work sheet.
