Roll to Roll supported model T151-RTR

Roll to Roll supported model
T151-RTR

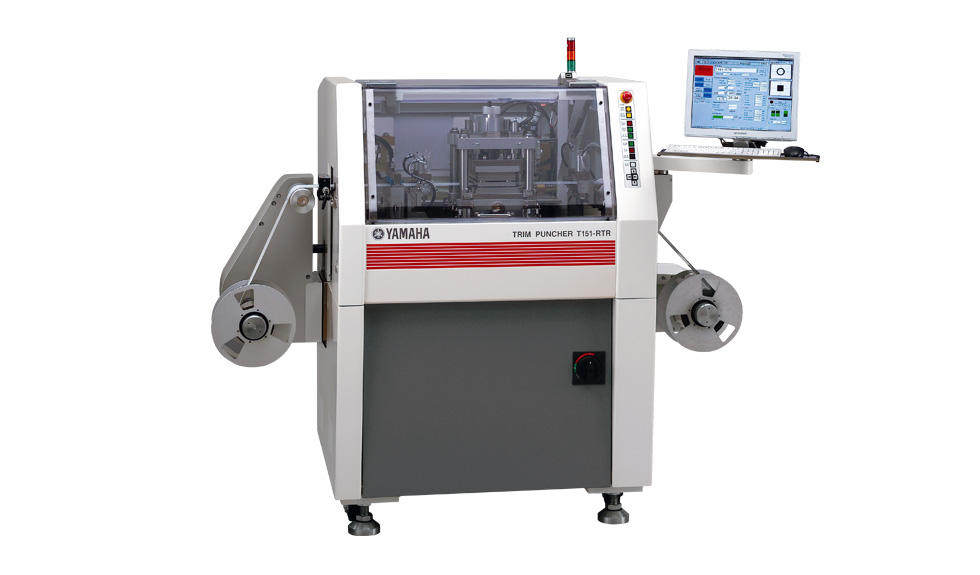

[ Image ] Roll to Roll supported model T151-RTR
A 158 mm wide roll transfer type machine. Up to 2 t thrust trimming at high speed (1.80 seconds/hole) with high accuracy (±25 μm) is possible.

Applications

Application examples
  • [ Image ] Flex PCB, COF

    Flex PCB, COF

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials

Max. work sheet size Roll witdh : Max. 158mm
Work sheet transfer Roll to Roll
Thrust power Approx. 2t

Dimensions

T151-RTR

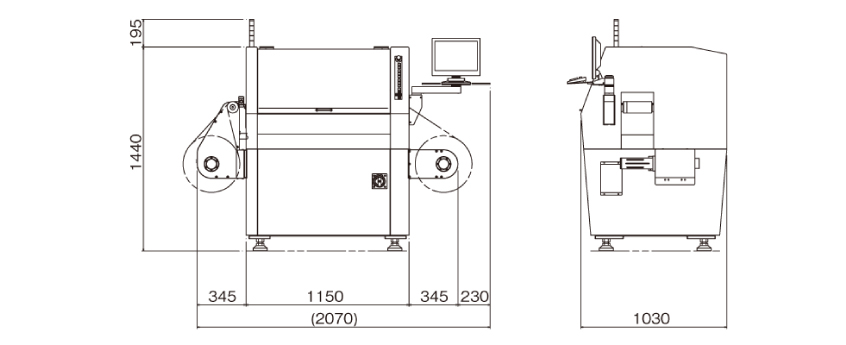

[ Image ] Dimensions T151-RTR

Specifications

Model T151-RTR
Type T151-RTR-2N
Application examples Flex PCB, Various film materials etc.
Processing capability Work sheet size Roll witdh : 48~158mm
Range*1 (X)500mm/(Y)158mm
Accuracy*2 ±25μm
Speed*2 1.8 s/shot
Punching head No. of heads 1
Thrust Power Approx. 20,000N (2,040kgf)
Die module Max. punching size X110mm x Y160mm
Max. half-cutting size
Built-in RFID Provided
Work sheet transfer Loading / Unloading Automatic
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment Weight Approx. 1,500kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 3kVA
Dry air 0.5MPa
  1. The actual processing range varies depending on the die module shape, holding range, etc.
  2. Data taken using our test work sheet.

Inquiry

TEL:+81-53-467-3601(FA Division)
