Roll to Roll supported model/large sheet support T261-GFR

Roll to Roll supported model/large sheet support
T261-GFR

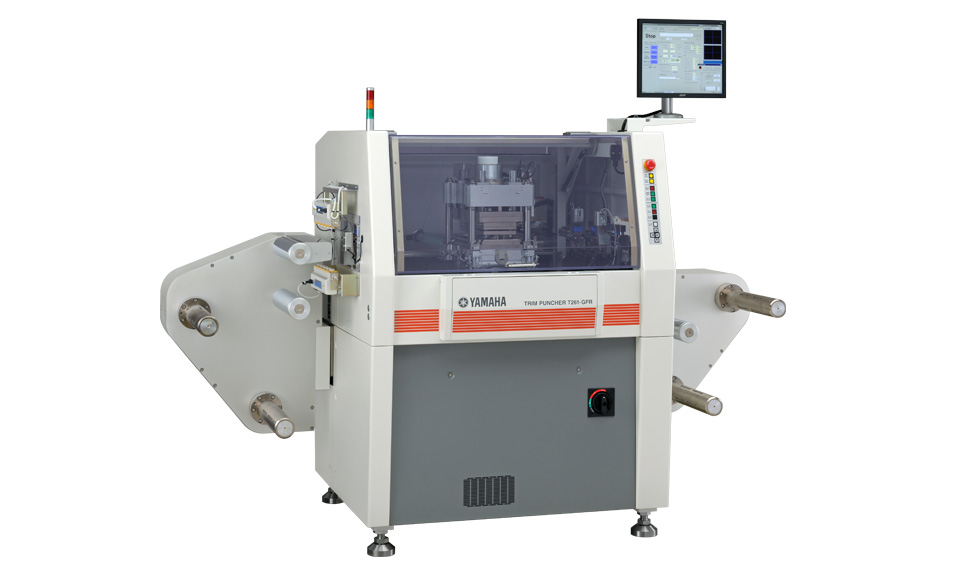

[ Image ] Roll to Roll supported model・large sheet support
A 260 mm wide roll transfer type machine. Up to 3 t thrust trimming at high speed (1.90 seconds/hole) with high accuracy (±25 μm) is possible.

Applications

Application examples
  • [ Image ] Flex PCB, COF

    Flex PCB, COF

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials

Max. work sheet size Roll witdh : Max. 260mm
Work sheet transfer Roll to Roll
Thrust power 3t

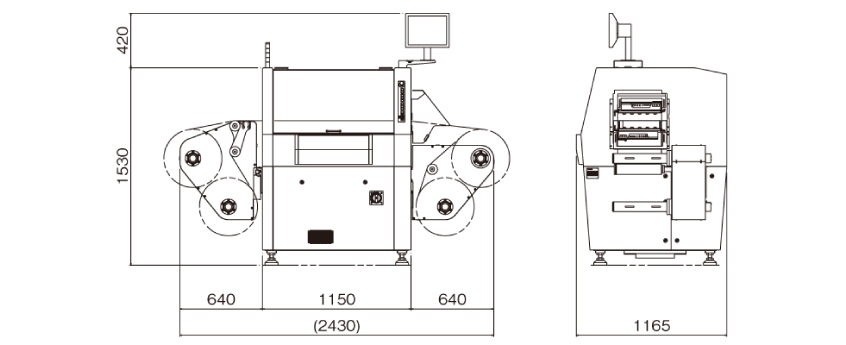

Dimensions

T261-GFR
[ Image ] Dimensions T261-GFR

Specifications

Model T261-GFR
Type T261-GFR-B
Application examples Flex PCB, Various film materials etc.
Processing capability Work sheet size 35~260mm
Range*1 X500mm x Y260mm
Accuracy*2 ±25μm
Speed*2 1.9 s/shot
Punching head No. of heads 1
Thrust Power Approx. 30,000N (3,058kgf)
Die module Max. punching size X114mm x Y260mm
Max. half-cutting size
Built-in RFID Provided
Work sheet transfer Loading / Unloading Automatic
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Punching deviation measurement, NG punching, automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output, die shot count
Usage environment Weight Approx. 1,500kg
Power supply 1-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. The actual processing range varies depending on the die module shape, holding range, etc.
  2. Data taken using our test work sheet.
