Automatic shielding film attaching machine Film Placer

PT601-SR
[ Image ] Automatic shielding film attaching machine・Film Placer PT601-SR

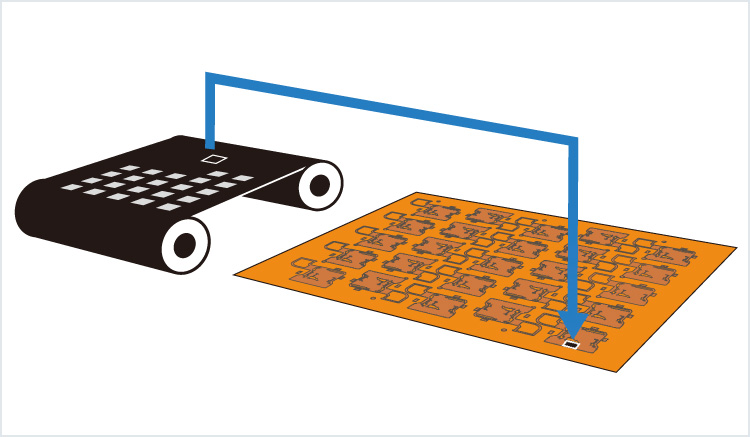

A machine for attaching EMI shielding film onto flexible PCBs. With an accuracy of ±50 μm, roll film is automatically punched and attached.
[ Image ] Film Placer
  • Compared to manual operation, improvement and stabilization of attachment quality are possible
  • No positioning hole for attachment required and surface mounting efficiency improved

Applications

Application examples

Attaching side

  • [ Image ] EMI shielding film

    EMI shielding film

Attached side

  • [ Image ] Flex PCB

    Flex PCB


Max. target work sheet size X610mm x Y510mm
Attachment speed 1.5 s/piece
Work sheet transfer Attachment target : Manual, Attaching film : Roll

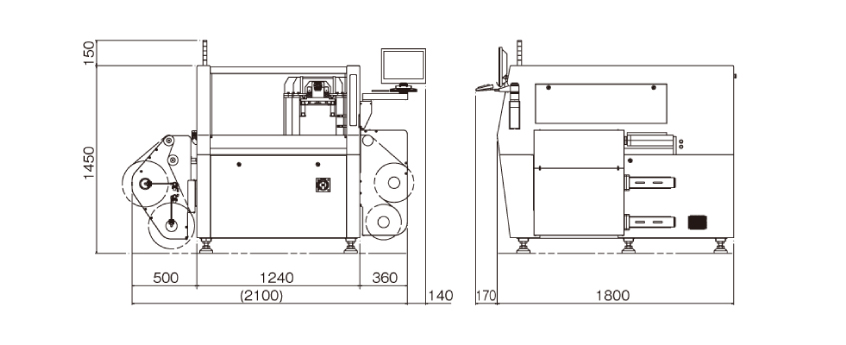

Dimensions

PT601-SR
[ Image ] Dimensions PT601-SR

Specifications

Model PT601-SR
Type PT601-SR
Application examples Flex PCB, Rigid-Flex PCB, etc.
Attachment target work sheet Max. work sheet thickness 0.5mm
Max. work sheet size X610mm x Y510mm
Securing method Rear-surface suction
Attachment film Attachment film EMI shielding film, stiffener, cover lay film, etc.
Max. film thickness 200μm
Roll width 100~250mm
Attachment capability Accuracy *1 ±50μm
Speed *1 1.5 s/piece
Attachment head No. of heads 1
Built-in RFID Provided
Heater tip heating face φ2.5mm (standard)
Heater temperature 0~300℃
No. of heaters per head 4
Punching range X120mm x Y160mm
Work sheet transfer Loading / Unloading Attachment target : Manual, Attaching film : Roll
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Heater temperature sensor, attachment accuracy measurement
Usage environment Weight Approx. 2,100kg
Power supply 3-phase, 180 to 240V AC, 50/60Hz, 6kVA
Dry air 0.5MPa
  1. Data taken using our test work sheet
