Desktop Hydrogen Leak Detector YHLD-100

Desktop Hydrogen Leak Detector
YHLD-100

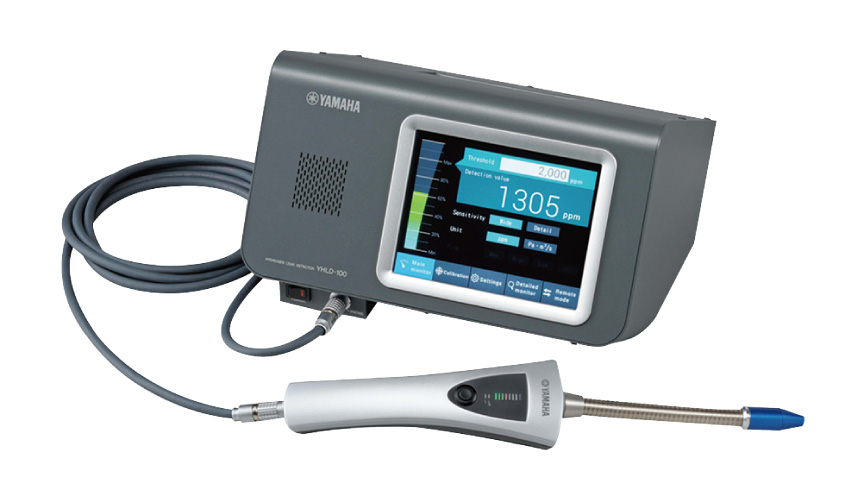

[ Image ] Desktop Hydrogen Leak Detector YHLD-100

Leak detected without fail and the leak location identified just with one unit

With its wide dynamic range, concentrations of 0.5 ppm to 13,000 ppm are measured just with one unit. For a concentration of 13,000 ppm or more, a warning is generated to stop the measurement process. The response speed is 0.7 seconds or less. Measurement is performed quickly, safely, and widely.

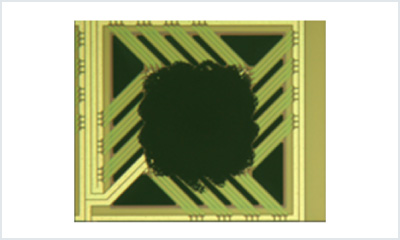

  • Yamaha's proprietary MEMS hydrogen sensor installed

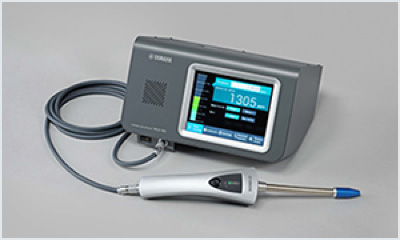

  • With a large color LCD touch panel installed and through interactive mode selection and setting functionality, easy operation realized

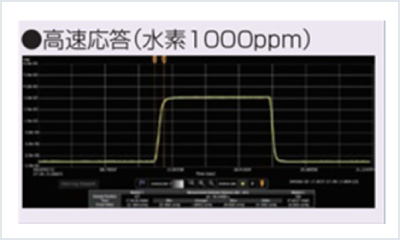

  • Return after measurement also made quick through high-speed response in one second or less

  • At high hydrogen concentrations, no occurrence of linearity degradation or output saturation. Even at 2,000 ppm or more, an output made without saturation.
  • With the inline sensor head, inline automatic inspection supported

Case study

Applications

Application examples
  • [ Image ] Food and cosmetic product containers

    Food and cosmetic product containers

  • [ Image ] Engine

    Engine

  • [ Image ] Air intake

    Air intake

  • [ Image ] Air conditioner

    Air conditioner
Detected concentration 0.5～13,000ppm
Detection method Sniffer method
Feature Inline support possible

Dimensions

［画像］外形寸法

Specifications

Type YHLD-100
Sensor MEMS
Detection gas Hydrogen (Recommended tracer gas ratio: 5% / hydrogen + 95% nitrogen)
Detective gas concentration Within 1 sec (10~90% at 10000ppm)
Response time 1秒以内（1,000ppm ; step応答80% : 10～90％）
Controller
(main body)		 Display 7.5" color LCD touch panel
Detail Measured concentration (numerical value and bar graph)
Unit ppm, Pa・m³/sec
Level selection Judgment value, setting value
Language English / Japanese
Detailed function Line chart (time vs measurement value)
Adjustment function Re-zero, "Wake-up" (means recover for sensor)
Speaker Buzzer for alert & measuring for value (concentration & leakage)
SD card Factory tuned sensor parameters are stored on the SD card
Probe Hydrogen status display on probe 9 stage multi-colored LED status indicator on probe handle
Detail Handy section measured value display and status monitor
Adjustment function Re-zero
Power voltage, power supply AC100-240V, 50/60Hz, 9W
Weight Controller (main body) 6.3kg, probe 0.3kg, Case 0.3kg
Usage environment Temp : 5 - 50℃, Humidity : under 80% (Non-condensing)
Interface Output I/O Dsub 25pin (8/8 point, PC insulation, 12-24V)
Measurement BNC connector (analog output; DC1-5V)
Output RS232C (character, value)
* The contents of this catalog are subject to change without notice.
* Modification to suit the customer's usage is also possible. Contact us for details.
