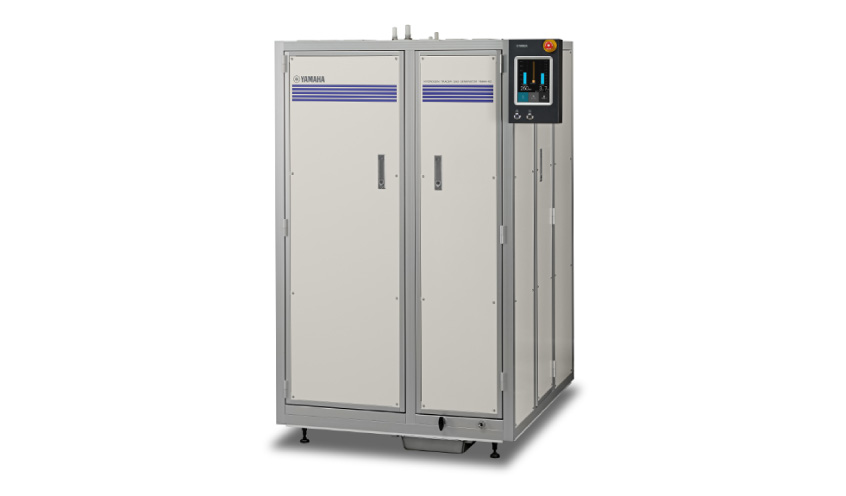

Hydrogen trace gas generator YMHN-50
Hydrogen trace gas generator
YMHN-50
YMHN-50
![[ Image ]Hydrogen trace gas generator YMHN-50](./file/683/ymhn_50_main.jpg)
Solve gas supply instability in leak tests

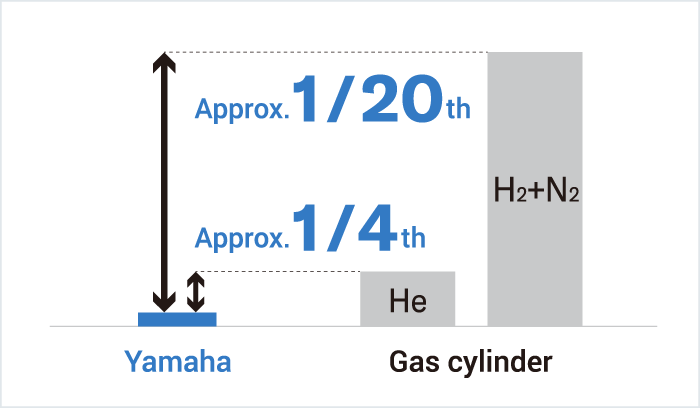

This equipment can generate a hydrogen-nitrogen mixed gas just by supplying purified water. Capable of generating trace gases that comply with international standards in a safe and affordable manner.No gas cylinder required, thus reducing cost
No frequent purchase of gas cylinders is necessary, eliminating what was a significant burden in conventional leak tests. Accordingly, running costs can be reduced to approximately one-quarter of that of tests that use helium gas, and one-twentieth of those that use hydrogen-nitrogen mixed gas.**When 50 NL/min is used 24 hours a day, 365 days per year
* Estimated by our company based on gas prices as of February 2020
![[Image] No gas cylinder required, thus reducing cost](./file/706/ymhn_50_img01.png)

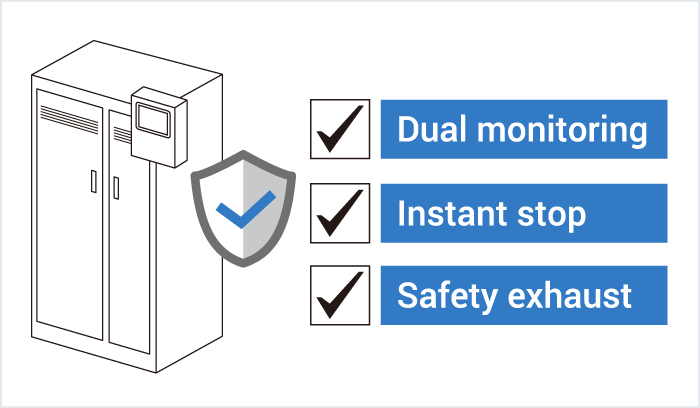

Initiatives for safety
Equipped with features such as a dual monitoring system that monitors the concentration of both hydrogen-nitrogen mixed gas and the atmospheric concentration within the equipment, an instant-stop function, and a safety exhaust function (patent pending), allowing safe operation of trace gas generation equipment with peace of mind.![[Image] Initiatives for safety](./file/705/ymhn_50_img02.png)

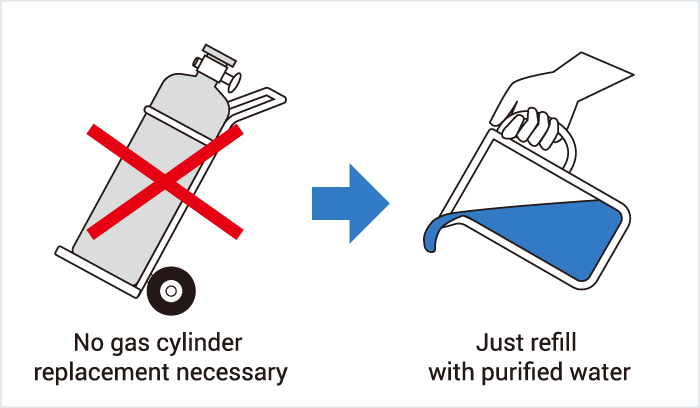

Reduced burden on workers
Gas can be generated simply by refilling with purified water, eliminating the need for the frequent gas cylinder replacement that is such a burden on workers. Users perform daily operations using the "Start" and "Stop" buttons, with no other troublesome settings required.![[Image] Reduced burden on workers](./file/702/ymhn_50_img03.png)
Applications
| Application examples |
|
|---|
![[ Image ] Food and cosmetic product containers](./file/599/work_container_img.jpg)
![[ Image ] Fuel tanks](./file/497/work_combustion_img.jpg)
![[ Image ] Aluminum wheels](./file/492/work_wheel_img.jpg)
![[ Image ] Battery cases](./file/684/work_batterycase_img.png)

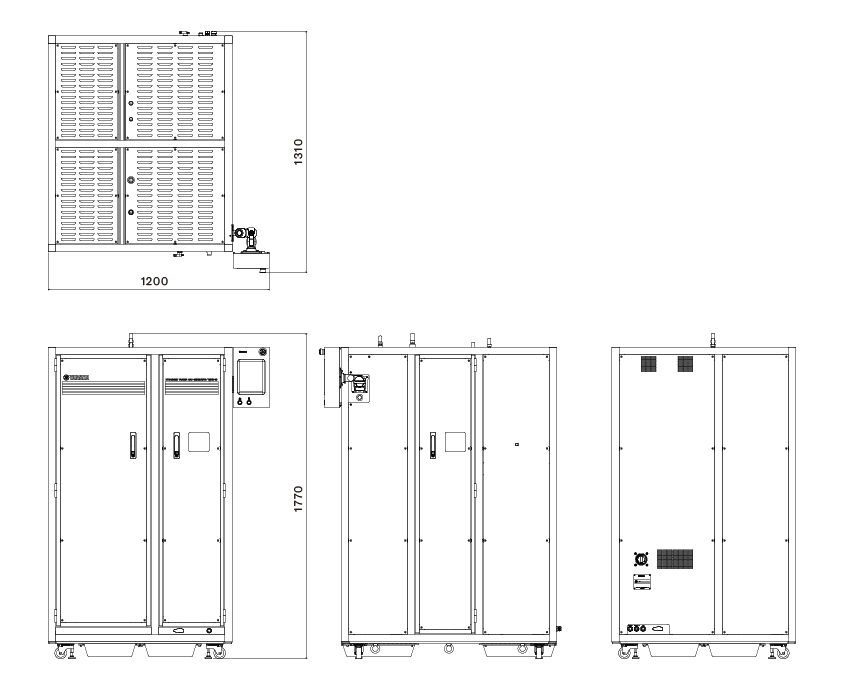

Dimensions
![[ Image ] Dimensions](./file/694/ymhn_50_size_img01.png)
Specification
| Model | YMHN-50 |
|---|---|
| Producible hydrogen concentration | Max. 3.5vol% |
| Trace gas discharge flow rate | Max. 50NL/min |
| Trace gas discharge pressure | Max. 390kPa |
| Water supply | Purified water (electrical conductivity of 0.2 μS/cm or below) |
| External dimensions | (W)1,200mm x (H)1,770mm x (D)1,310mm |
| Weight | Approx. 600kg |
* The contents of this catalog are subject to change without notice.
* Modification to suit the customer's usage is also possible. Contact us for details.
* Modification to suit the customer's usage is also possible. Contact us for details.
