High-speed model F602 S2

High-speed model
F602 S2

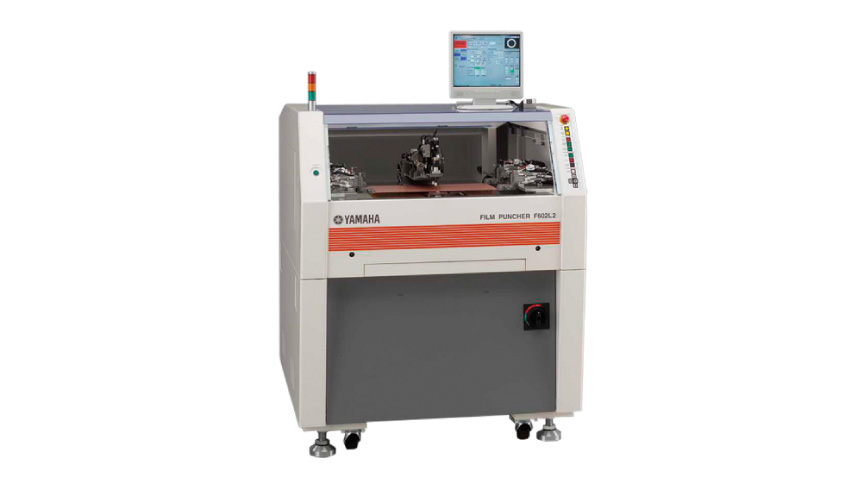

[ Image ] High-speed model F602 S2
Standard type of machine in which a work sheet is loaded/unloaded manually. With an electric punching head, high-speed (0.24 seconds/hole) and high-accuracy (±20 μm) punching is possible.

Applications

Application examples
  • [ Image ] Flex PCB, PI film

    Flex PCB, PI film

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials

Max. work sheet size X545 x Y365mm
Processing speed 0.24 s/hole
Work sheet transfer Loading:Manual Unloading:Manual

Dimensions

F602 S2/SP2

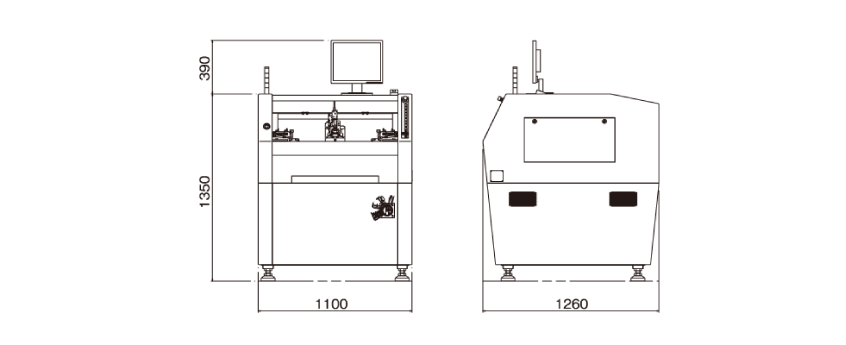

[ Image ] Dimensions F602 S2/SP2

Specifications

Model F602S2
Type F602S2
Application examples Flex PCB, Various film materials
Processing capability Work sheet size X250~545mm / Y140~365mm
Range X: Range excluding 12mm margin from left/right ends of workpiece
Y: Entire workpiece
Speed*1 0.24 s/hole
Accuracy*1 ±20μm
Punching head Punching type Electric punching head
No. of heads 2
Work sheet transfer Loading / Unloading Manual
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN・USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output
Usage environment Weight Approx. 1,020kg
Power supply 1-phase, 200 to 240V AC, 50/60Hz, 3kVA
Dry air 0.5MPa
