Roll to Roll supported model F250DD-RTR / GFR

Roll to Roll supported model

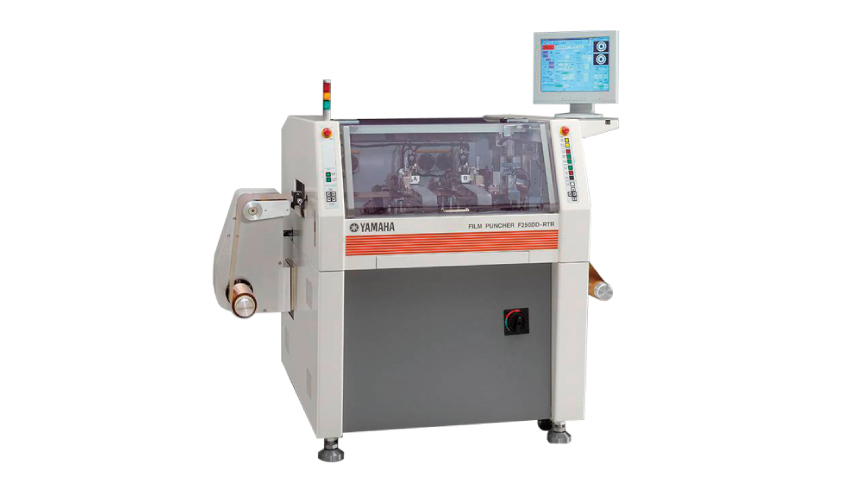

[ Image ] Roll to Roll supported model F250DD-RTR/GFR
A 250 mm wide roll transfer type machine. With a double-arm electric punching head, high-speed (0.08 seconds/hole) and high-accuracy (±25 μm) punching is possible. A choice can be made between two work sheet transfer systems.


Application examples
  • [ Image ] Flex PCB, PI film

    Flex PCB, PI film

  • [ Image ] Touch panel

    Touch panel

  • [ Image ] Various film materials

    Various film materials

Roll to Roll support Roll witdh : Max. 250mm
Processing speed 0.08 s/hole


[ Image ] Dimensions F250DD-RTR/GFR


Model F250DD-RTR F250DD-GFR
Type F250DD-RTR-3N F250DD-GFR-3N
Application examples Flex PCB, Various film materials
Processing capability Work sheet size Roll witdh : 150~250mm
Range X580mm x Y250mm
Speed*1 0.08 s/hole 0.085 s/hole
Accuracy*1 ±20μm
Punching head Punching type Electric punching head
No. of heads 4
Work sheet transfer Loading / Unloading Roll to Roll
Image processing Camera view X4.8 x Y3.6mm (standard)
Pattern detection Pattern recognition via grayscale
Illumination type Transmission light, reflection light
Hardware Interface LAN,USB
Display 17 inch LCD with touch panel
Software OS Windows7
Production support function Automatic creation of optimal punching path, automatic punching offset, punching deviation accuracy measurement, measurement result output
Usage environment Weight Approx. 1,300kg Approx. 1,310kg
Power supply 1-phase, 200 to 240V AC, 50/60Hz, 5kVA
Dry air 0.5MPa 0.4MPa
  1. Data taken using our test work sheet
