Non-contact Ultrasonic Tester SST-304 / SST-304C
Non-contact Ultrasonic Tester
SST-304 / SST-304C
SST-304 / SST-304C
![[ Image ] Non-contact Ultrasonic Tester SST-304series](./file/90/sst_304_main.jpg)
This equipment can inspect various workpieces for air bubbles, peeling spots, defects, and crimping failures inside.

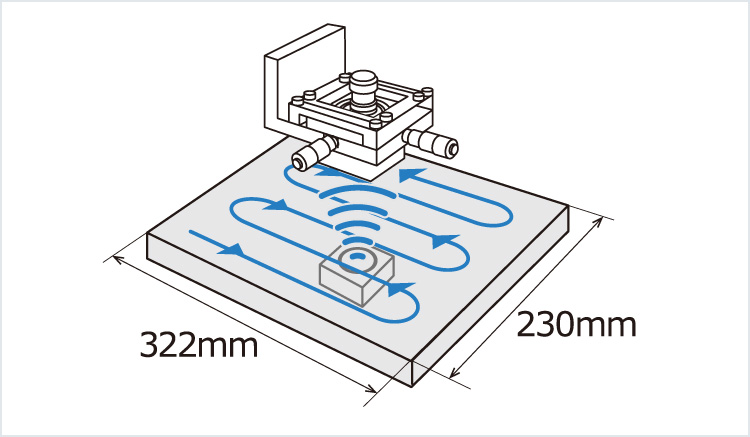

With a Yamaha ultrasonic amplifier installed, inspection without touching the workpiece in the air is realized. Air bubbles and peeling spots difficult to be detected by X-ray inspection can be vividly detected. A standalone/general-purpose type, and a full-auto/conveyor type are available.![[ Image ] Inspection illustration](./file/428/sst_304_img01.jpg)
- Non-contact inspection based on ultrasonic transmission by using sound (="sono") image (="graph")
- SST-304C supporting product line and automation. Design and manufacturing carried out according to the customer's specifications
- Various defect inspections supported
- Customization supported depending on the workpiece size (Such as changing the equipment size)
Applications
| Application examples |
|
|---|

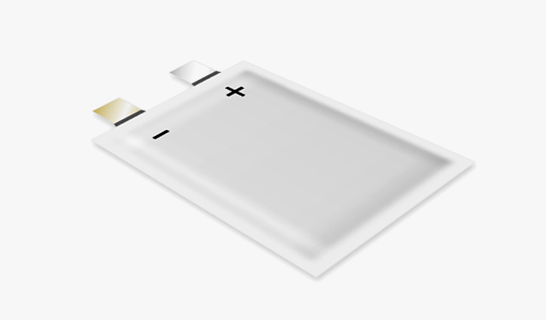

![[ Image ] Lithium-ion battery](./file/478/work_lithium-ion_img.jpg)
![[ Image ] CFRP/composite material](./file/480/work_cfrp-composite_img.jpg)
SST-304, Standalone/general-purpose type
| Scanning range | W322 x D230㎜ |
|---|---|
| Loading / Unloading | Manual |
| Feature | High general versatility |
SST-304C, Full-auto/conveyor type
| Scanning range | W400 x D280㎜ |
|---|---|
| Loading / Unloading | Automatic |
| Feature | Production line/automation supported |
Solution Cases

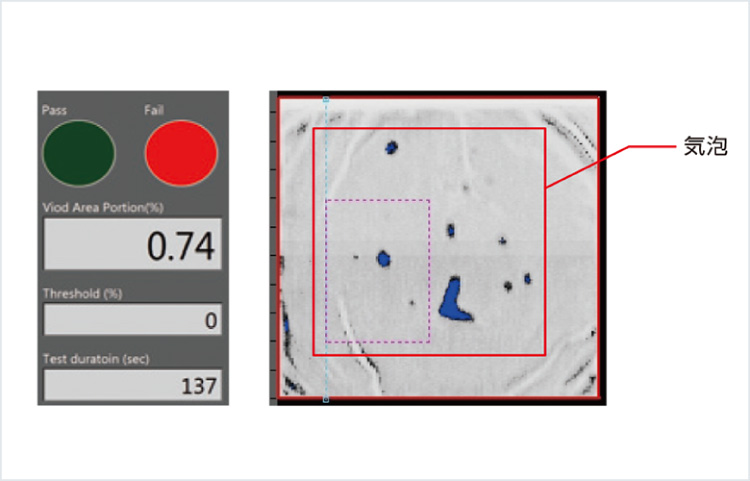

Lithium-ion battery air bubble inspection
Inspection of the pouch for residual air bubbles and impregnation inside is possible. Inspection can be performed quantitatively by using threshold values.![[ Image ] Lithium-ion battery air bubble inspection](./file/94/sst_304_solution_img01.jpg)

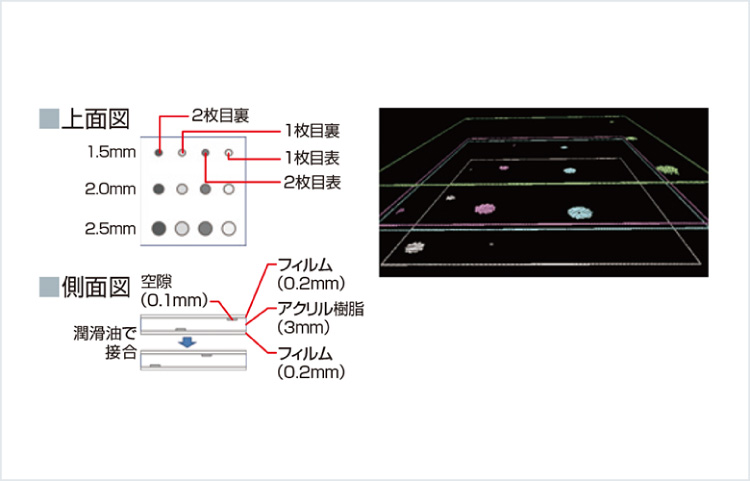

Flaw depth evaluation <Patent pending>
Through the calibration method by focusing any layer, flaw depth can be analyzed by obtaining tomography images.![[ Image ] Flaw depth evaluation <Patent pending>](./file/93/sst_304_solution_img02.jpg)

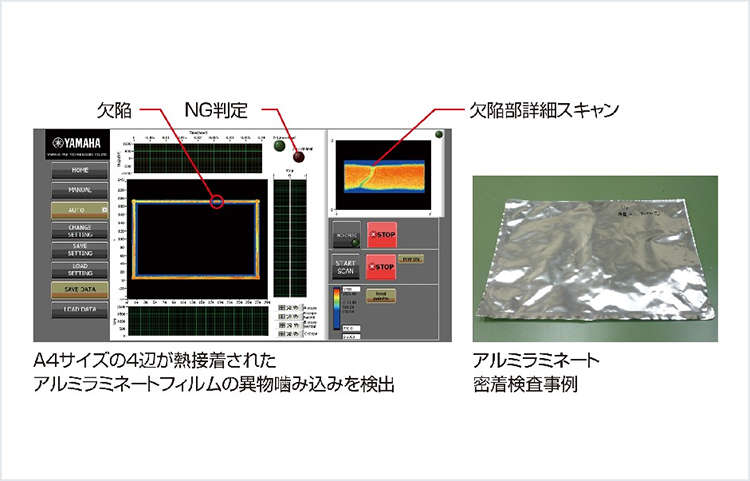

Package laminate defect inspection
A high-speed perimeter scan detects a signal drop.![[ Image ] Package laminate defect inspection](./file/375/sst_304_solution_img03.jpg)

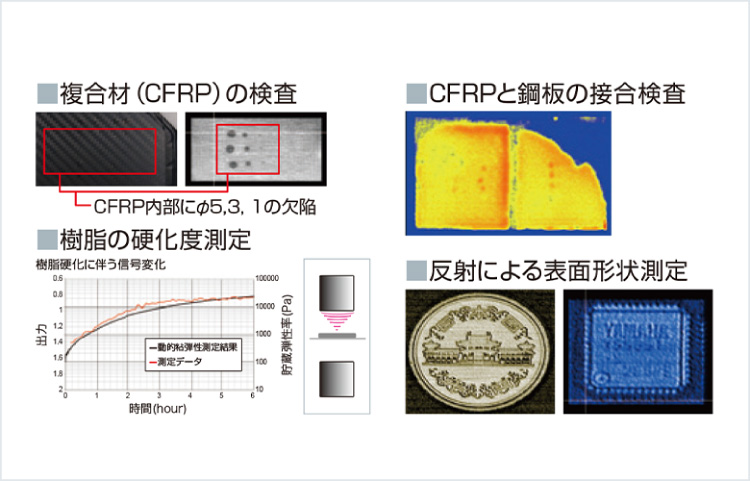

CFRP and composite material flaw inspection
![[ Image ] CFRP and composite material flaw inspection](./file/91/sst_304_solution_img04.jpg)
Dimensions

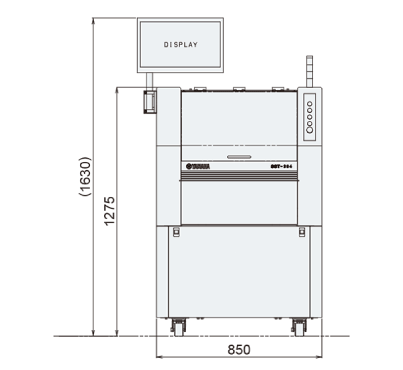

SST-304
![[ Image ] Dimensions SST-304](./file/96/sst_304_size_img01.gif)

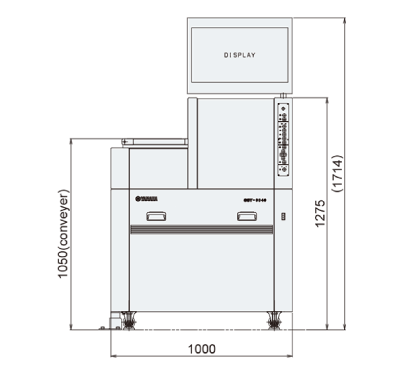

SST-304C
![[ Image ] Dimensions SST-304C](./file/95/sst_304_size_img02.gif)
Specification
| Type | SST-304 | SST-304C |
|---|---|---|
| Scanning range | W322 x D230mm | W400 x D280mm |
| Drive | AC servo motor 4 axis | AC servo motor 4 axis |
| (Drive option) | Rotation measurement unit (servo motor 1 axis) | |
| Display | 18.5 inch wide LCD | 24 inch wide LCD |
| Data | HDD | HDD |
| Weight | Approx. 450kg | Approx. 600kg |
| Power voltage, power supply | AC100V~220V, 50/60Hz, 1kVA | AC100V~220V, 50Hz, 1kVA |
| Air | Unused | Unused |
| Usage temperature | 5～40℃ | 5～40℃ |
| Automatic test | Communication with the host computer via an external IO terminal Barcode acquisition, storage of results A wide variety of models supported through model registration |
* Please note that specifications are subject to change without notice.
